Touch Door Station, 2 Wire

ERL Stand: 5/L75

Product Features

  • Multifunctional Unit: Combines door call, intercom, and electronic access control into one device for 2-wire intercoms.

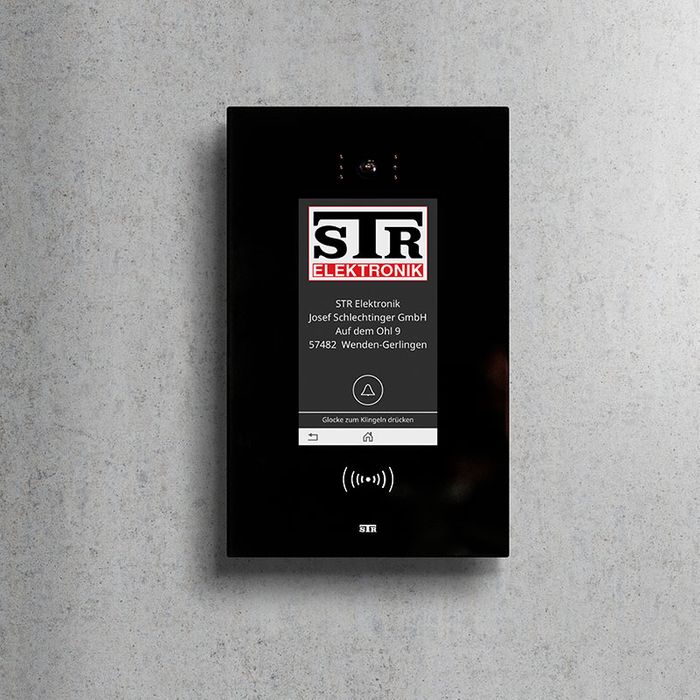

  • Intuitive Touch Display: Large 7" touch display for direct operations.
  • High-Resolution Camera: Integrated camera with a resolution of up to Full HD 1920x1080 pixels.
  • Accessibility Features: Acoustic and visual status display of the intercom for accessibility according to DIN18040 (two-senses principle).

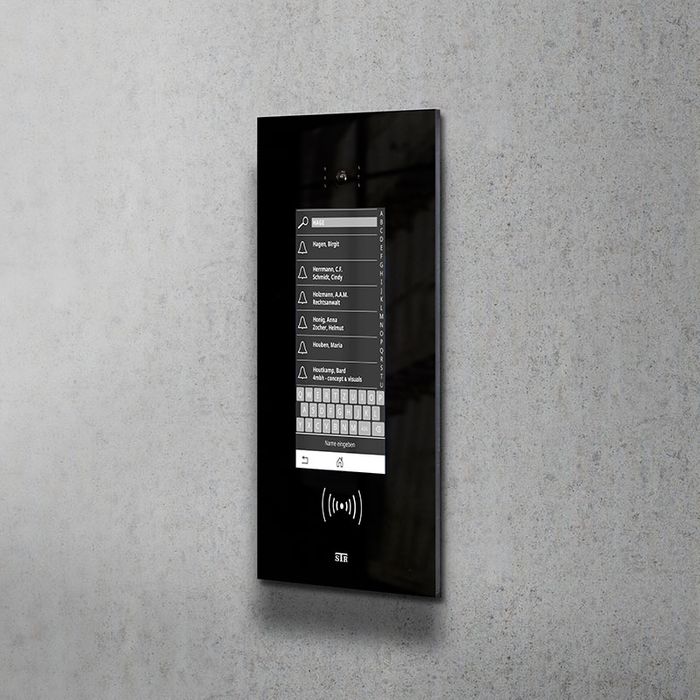

  • Advanced Search Function: Participant list for up to 2000 participants with a convenient search function.
  • Integrated RFID Reader: For electronic keyless access control using a virtual code module.
  • WiFi Enabled: Enables programming/administration via PC or mobile device over the network.
  • Vandalism Resistant: The front is made of black safety glass offering high protection against vandalism.

Features & Benefits

  • Automatic Activation: Proximity sensor automatically activates the display when a person approaches.
  • Customizability: Multiple languages, logos, plans, and more.
  • Door Opener Connection: Connection for door opener (requires 12V/AC, power supply unit NTR201).
  • Remote Maintenance: Programming/administration via network, also available via remote maintenance.
  • Tamper Detection: Detects manipulation attempts with a sabotage contact.

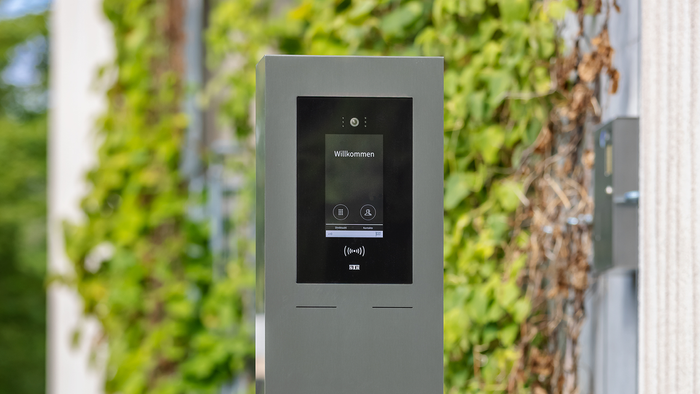

  • Flexible Installation Options: Suitable for flush mounting directly in the wall or as a rear-mounted device for flush installation in metal door stations, mailboxes, or multifunctional steles.

Technical Specifications

  • Dimensions for Flush Mounting: Front W 176 x H 281 x D 5 mm, floating in front of the wall. Wall installation (flush-mounted box dimensions): W 161 x H 275 x D 65 mm.
  • Required Power Supply: 12V/DC or PoE
  • Temperature Range: -20°C to +50°C
  • Integrated Camera Resolution: up to Full HD 1920x1080 pixels

Note: Protect from direct sunlight!

The STR Qwiksmart Touch Door Station represents the gold standard of reliable and secure communication solutions. Whether for a new build or a renovation, Qwiksmart makes installation and maintenance a breeze.
