As part of the TTRIP range, the TTRIP-1 features a single call button, but options are available for up to 8 call buttons (TTRIP-8) within the same robust design. For installations requiring more than 8 call buttons, the IP Key Extension (TE8-1) module allows an additional 8 buttons, supporting larger-scale intercom systems.

Key Features & Benefits

• High-Quality Video & Audio Communication
  • 2MP HD camera with fisheye lens for a wide field of view.
  • Infrared illumination for clear video in low-light conditions.
  • Omnidirectional microphone and integrated speaker for crystal-clear audio.
  • Noise and echo cancellation for improved communication quality.
• Robust & Vandal-Resistant Design
  • 2mm-thick stainless steel front panel for maximum durability.
  • Flush-mounted intercom grille and button to prevent tampering.
  • Weather-resistant construction for reliable outdoor use.
  • IK07 impact protection rating, ensuring resilience against vandalism.
• Flexible Installation & Integration
  • Network-based system using standard TCP/IP protocols.
  • PoE (Power over Ethernet) support for simplified installation.
  • Web-based configuration for easy setup and remote management.
  • Compatible with Qwikbus, Intelliport, and Phoneport intercom systems.
• User-Friendly Functionality
  • Stainless steel call buttons with an impact-resistant nameplate.
  • Available with up to 8 call buttons (see configurations below).
  • For installations requiring more than 8 buttons, the IP Key Extension (TE8-1) allows an additional 8 call buttons.
  • LED nameplate lighting available as an optional feature.
  • Multiple access options, including integration with electronic access control systems.
  • Customisable front panel labelling, including laser engraving or screen printing.

Available Configurations

The TTRIP range offers single-row call button configurations for up to 8 users. For larger installations, double-row versions and the IP Key Extension (TE8-1) allow for expansion.

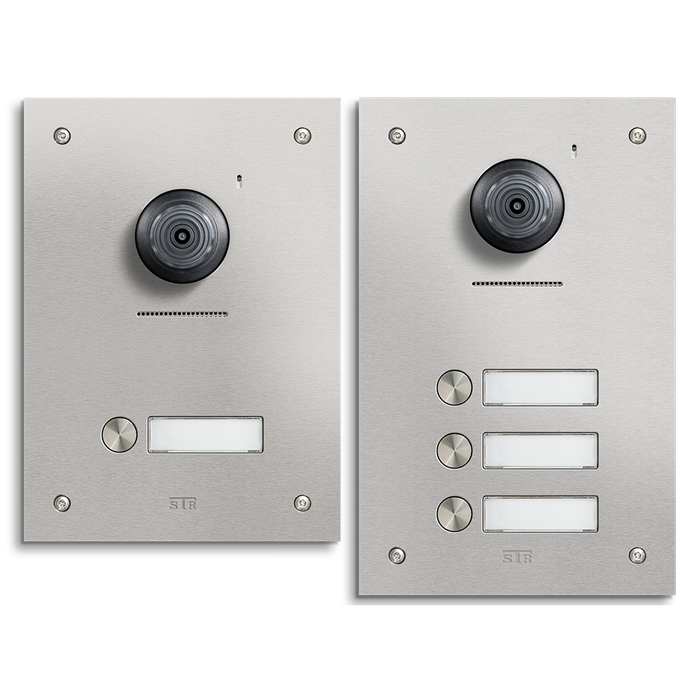

Single-Row Configurations

• TTRIP-1 – 1 call button (140mm x 196mm)
• TTRIP-2 – 2 call buttons (140mm x 224mm)

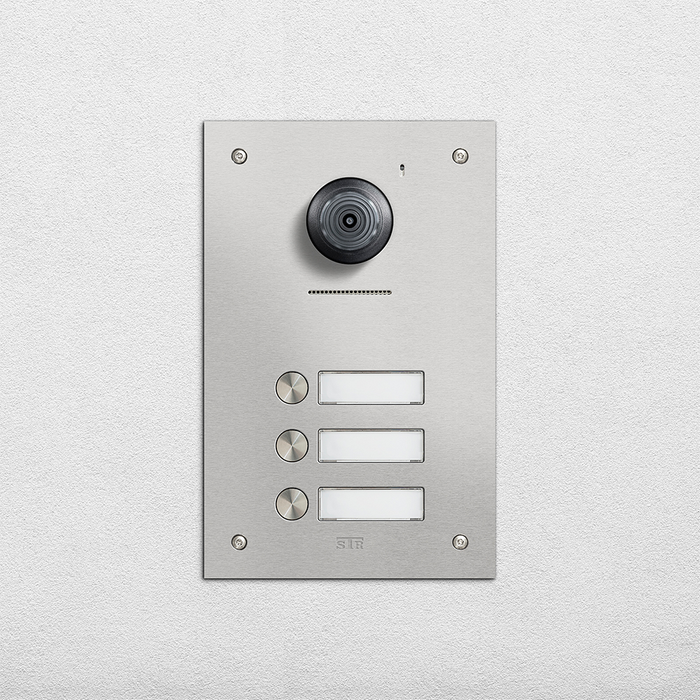

• TTRIP-3 – 3 call buttons (140mm x 252mm)
• TTRIP-4 – 4 call buttons (140mm x 280mm)
• TTRIP-5 – 5 call buttons (140mm x 308mm)
• TTRIP-6 – 6 call buttons (140mm x 336mm)
• TTRIP-7 – 7 call buttons (140mm x 364mm)
• TTRIP-8 – 8 call buttons (140mm x 392mm)

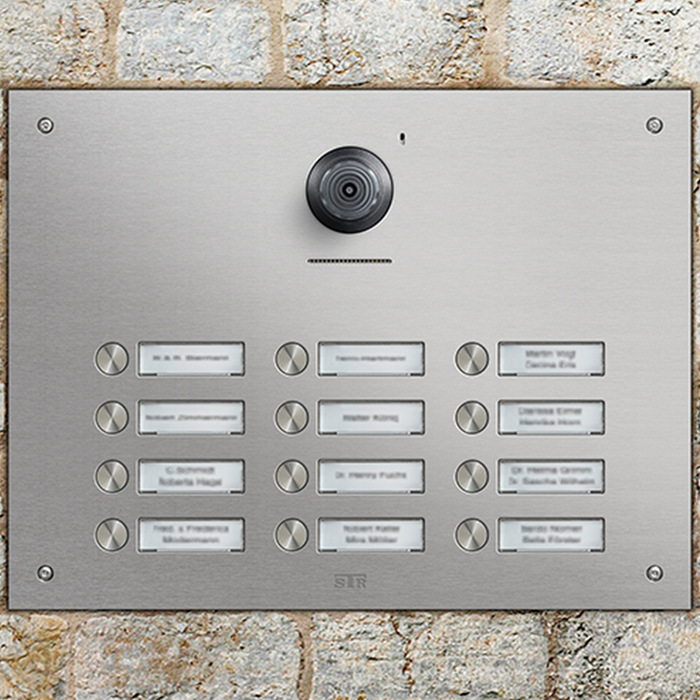

Double-Row Configurations (For Larger Installations)

• TTRIP-6/2 – 6 call buttons (240mm x 220mm)
• TTRIP-8/2 – 8 call buttons (240mm x 248mm)
• TTRIP-10/2 – 10 call buttons (240mm x 276mm)
• TTRIP-12/2 – 12 call buttons (240mm x 304mm)
• TTRIP-14/2 – 14 call buttons (240mm x 332mm)
• TTRIP-16/2 – 16 call buttons (240mm x 360mm)

Note: For installations requiring more than 8 buttons, the IP Key Extension (TE8-1) allows an additional 8 call buttons. Up to 20 modules can be combined for large-scale projects.

Applications

The TTRIP-1 Robusto IP door station is ideal for a range of applications, including:

• Residential buildings – Single-family homes, apartments.
• Commercial premises – Office buildings, secure entrances.
• Public & institutional sites – Schools, hospitals, government facilities.
• High-security locations – Gated communities, warehouses, industrial sites.
