The ANT-5000 can be used as a Ubuntu 8 core processor embedded computer that can run multiple docker images. We pre load the Ubuntu environment and 4K Video encoder images (Encoder in demo form upgradable with licence key to full version). You can then create your own branded product.

The Video encoder is a full 4K P60 encoder with 4 streams utilising the HDMI input and one of the ethernet Network ports plus Video bypass via one of the two HDMI Outputs.

The base UBUNTU unit and will benefit from our current applications (4K Encoder) plus future upgrades, like Network Recording and other exciting features. All these are available to download, and in the future as demo version upgrades for testing and development purposes. Upgrades to fully functional versions will simply require the purchase of a licence key.

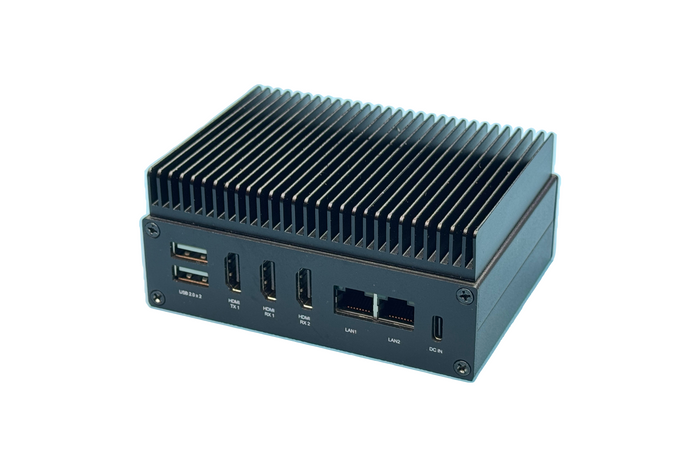

The box has Dual Port USB 3.0 and dual port USB 2.0 plus 1x USB-C 3.0, Audio input / Output 3.5mm jack socket, IR interface for remote controls, Micro SD card interface.

The Dimensions : 115mm x 85mm x 50mm high, with a small form factor, the unit has a Standard heatsink fitted (no fan).
