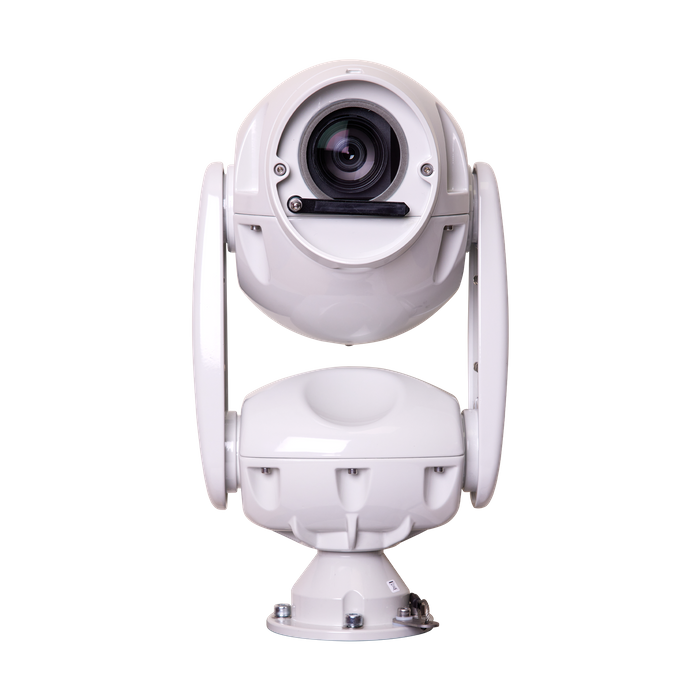

X4 COMMANDER

RedVision CCTV Stand: 5/H15

Everything about the X4 COMMANDER™ rugged, ball PTZ is of high quality. All moving parts are designed to last; from its long-life, silicone wiper through to the motor technology used in its pan and tilt mechanism and its 37x optical zoom camera module, with exceptional low-light performance. The camera is perfectly balanced, minimising component wear and giving a mean time before failure (MTBF) rating of 7 years.

The X4 COMMANDER™ has intuitive, operator control, from fast pan and tilt speeds of up to 180° / second to speeds of less than 0.1° / second, for when an operator is precisely tracking a target. The COMMANDER™ also features long-life, super-efficient, white-light and IR LED illumination technologies, for night-time operation.
3D positioning allows operators simple control of the X4 COMMANDER™ PTZ. Quick and simple setup directly from the COMMANDER™’s Web User Interface; or tracking targets by mouse click from a compatible control platform, latency and over run are no longer an issue.

The X4 COMMANDER™ is designed for easy installation and configuration. A complete range of brackets, mounts and cable extensions allow upright or hanging installation in any environment, with a choice of RAL colour options to order. Cantilever arms enable the camera to view directly downwards on pole or tower mounts. The X4 COMMANDER™ mounting bracket has a 4” PCD mount with M8 clearance holes.
The X4 COMMANDER™ utilises a tooled silicone wiper option to keep the camera’s view through the flat, scratch-resistant window free of water and dirt. A linkage-free, sprung steel mechanism reduces wiper wear and a polycarbonate window gives an even tougher option. Wiper activation is by a button press on VMS systems, including the VMS1000™, or by pre-set.

The X4 COMMANDER™ has an extensive range of features including four video streams for recording, visualisation, set-up and servicing; H265, H264 and MJPEG compression; optional 256GB maximum SD card-based edge storage; ONVIF compliance to Profile S, G and Q; 400 pre-sets, 12 tours, 12 scans, 6 tracks and 20 privacy masks; alarms, motion detection, intelligent analytics and tracking; and its operating temperature range is -40°C to 70°C. A 90W PoE version (802.3bt) offers quick and easy connectivity via RJ45 socket, operating over a full 100m Cat 5e span.

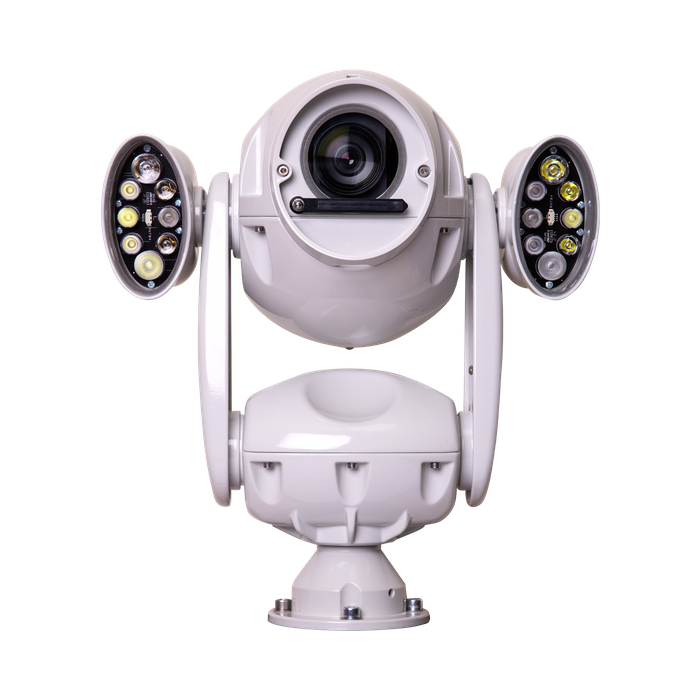

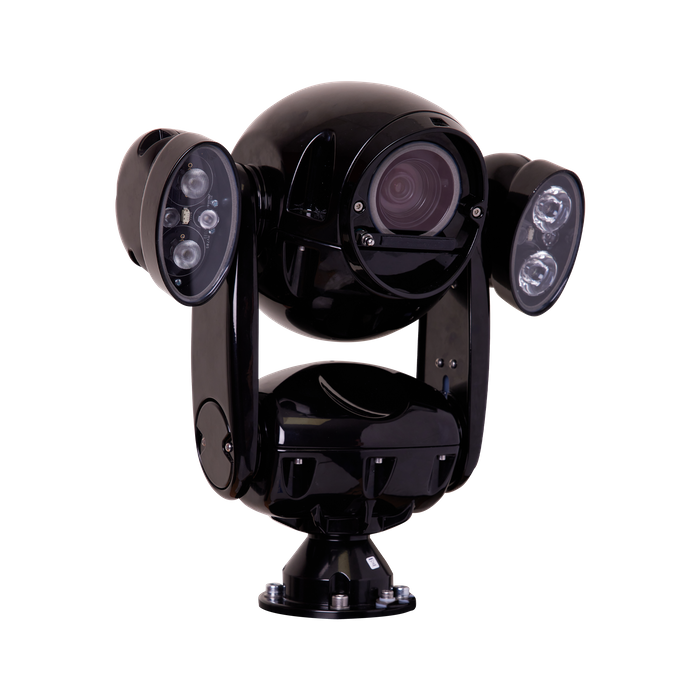

The Redvision X4 COMMANDER™ rugged, ball PTZ cameras have infra-red (IR) and white light illumination options, using long-life, super-efficient LEDs. DORI (Detection, Observation, Recognition and Identification) tests show that the X4 COMMANDER™ performs up to 500m. Utilising the latest in sensor technology, the 1/2" CMOS Starlight sensor has exceptional low-light performance down to 0.001 Lux in colour.
The X4 COMMANDER™ has adaptive Smart illumination, automatically adjusting IR and white light intensity in proportion to zoom and scene content. This feature ensures scene images are well-lit, but not bleached by over-exposure.
White light can be switched on as a visual deterrent to intruders.

The X4 COMMANDER™ has intelligent, auto PTZ tracking where the camera will automatically follow people or vehicles moving within a scene, adjusting zoom and focus in real-time.

Categories

  • CCTV & Video Surveillance
  • VMS
  • Video Analytics
  • Perimeter Security
