Model: YM-280N(LED)

Size: 250Lx49Wx28H(mm)
Armature Plate Dimension: 180Lx38.8Wx13.2H(mm)
Holding Force: 280kg(600Lbs)
Input Voltage: DC12V (Adjustable DC24V)
Cover Finish: Anodized aluminum
Current: 12V/500mA(±10%); 24V/250mA(±10%)

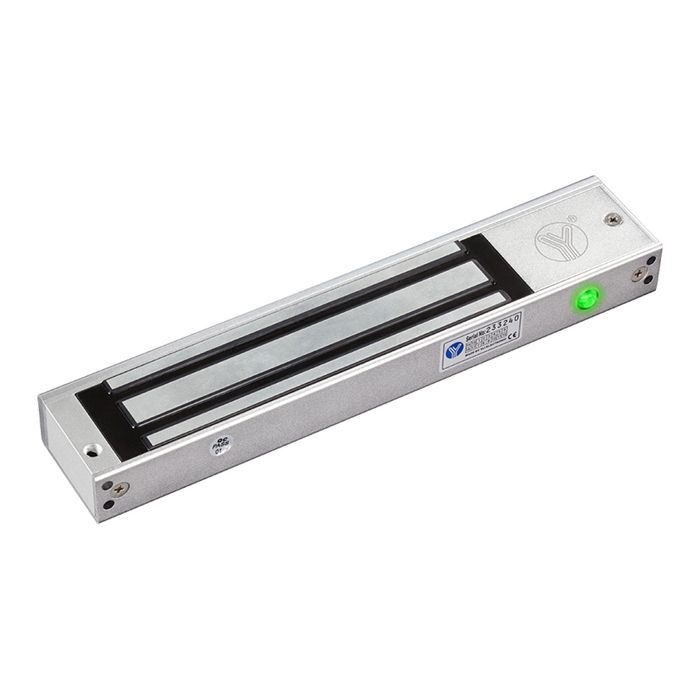

LED: Red shows locked; Green shows unlocked
Signal Output: Lock signal(NO/NC/COM)
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤+20°C
Operating Temp: -20°C~ +55°C(-4--131°F)
Humidity: 0~90%(non-condensing)
Weight: 2.1KG
