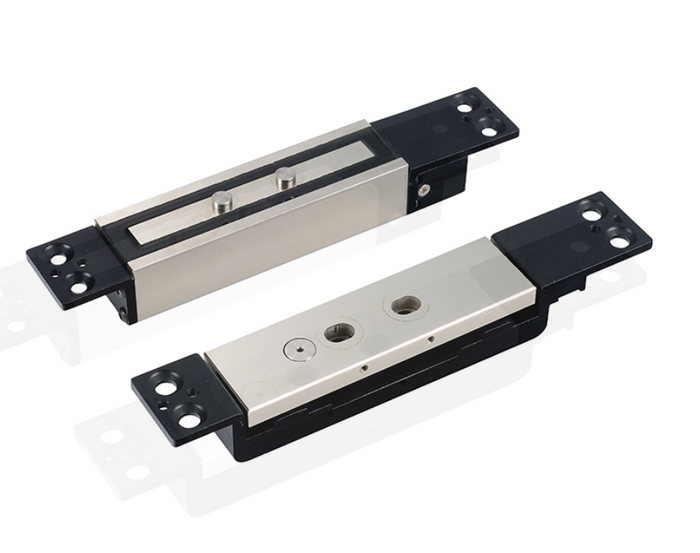

* Compact all-in-one design and easy to install.
* Built-in micro controller with door open delay time and door position detection outputs.
* Suitable for all types of 90 or 180 degree open aluminum or wooden doors.

Repeated locking function. Automatic repeated locking (maximum 60 times) when door is not locked at the correct position.
Power Supply: 12V/24V DC(auto-adjustinCg).
Maximum shear force of 1200kg (2600 lbs.), maximum magnetic suction up to 5mm (@24V).
Two long locking holes at cater corners of the armature are able to fine adjust both armature and body when they are installed.
Power consumption(Operation current: 900mA; Standby current: 220mA@12VDC / 190mA24VDC).
Operation temperature: 0~90℃; Humidity: 85%Rh max.
Certification: CE
