Features

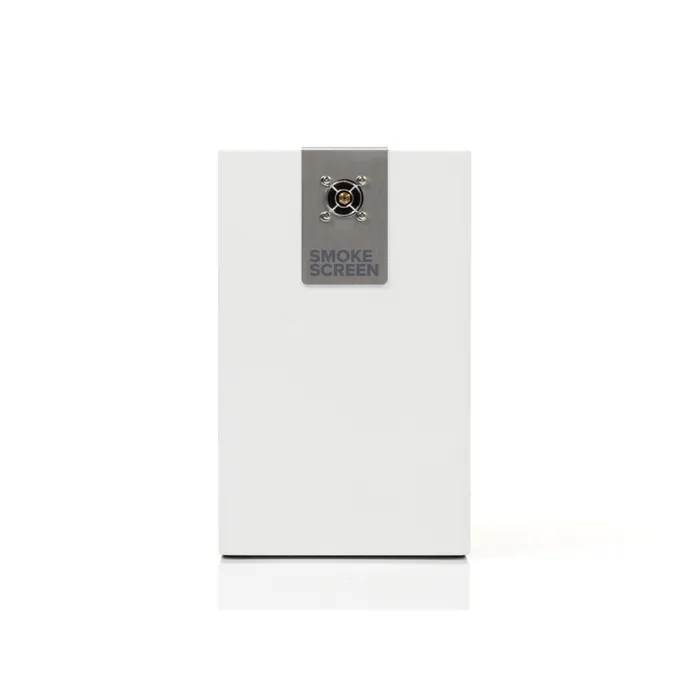

The Sentinel S55 marks a step up from the S35 when it comes to output, and is perfect for those situations when you need a little more from your security fog generator. It has all the features synonymous with the world class Sentinel range and is an incredibly versatile addition to your security setup.

The Smoke Screen Sentinel range has been designed and manufactured for permanent installation either as a fully integrated part of an intruder alarm system or as a stand-alone system. The range comprises some of the most advanced security fog generators in the world.

• Competitive pricing, easy installation, low running costs and 3 year warranty – contact us for more details.
• Service contract available – including free fluid re-fills and annual maintenance check.
• Simple integration into existing alarm systems.
• Powerful anti-raid burst (Turbo Mode) and multi-nozzle options.
• Dry fog guaranteed to leave no residue and won’t damage your goods.
• Persistent fog production – small particle size means the smoke will last up to 40 minutes unventilated.
• Full heater redundancy protects against critical failure.
• Supports automatic re-firing via screen-sensor technology.
• Energy-saving mode.
• Battery back-up for off-mains operation (min. 1 hour).
• Compliant with International (IEC62642:8) and European Standards (EN50131:8).

Operation

• 4 inputs and 7 outputs.
• LCD status display and on-board event log.

Construction

• Rugged and compact steel casing in white/black.
• Environmental pack for installation in confined spaces with elevated ambient temperatures.
• Precision steel heater block offers high levels of performance and reliability, and allows use of most persistent smoke chemical.

Standards Compliance

• EN50131:8 and IEC62642:8.
• CNPP Rating: Class I Category 30.

Fluid

1000ml fluid system.

Data

• Dimensions: 37.0(H)* x 14(D) x 23(W) cm *add 0.5cm for feet.
• Weight: 12kg (pre-install), 14.5kg (installed).
