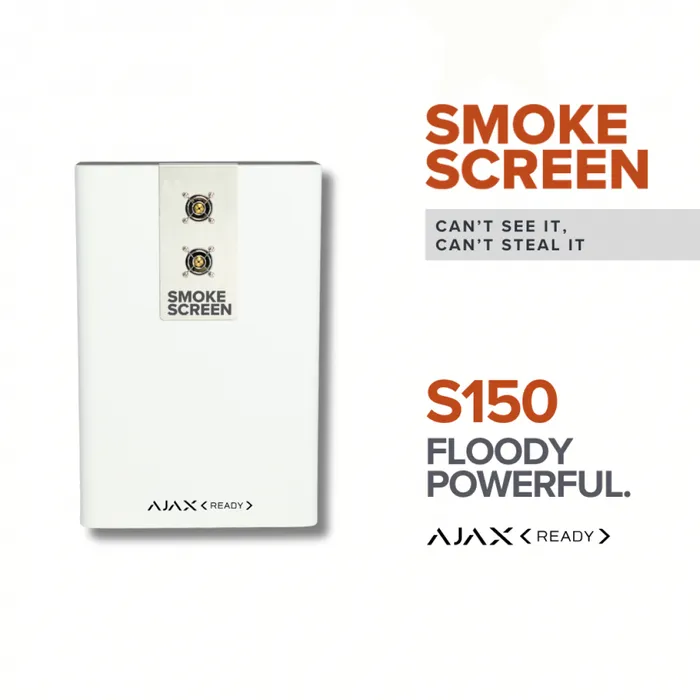

The Sentinel S150 is our newest and fastest security fog generator. It makes use of a dual pump powered, dual helix heater block allowing for a rapid through flow of the fog consumable. What does all that mean in real terms? Well, put simply it means that the fog is produced very quickly indeed. Due to the velocity of the fog plume, the generator can be installed much higher than other generators and the fog will still hit the floor with enough force to rapidly spread into areas where obscuration is needed.

• Extreme fog production to very high obscuration levels.
• Individually adjustable dual nozzles to tune cover to all areas where cover is needed.
• High velocity fog allows for higher-than-normal mounting locations.
• Supports automatic re-firing via screen-sensor technology.
• Dry fog guaranteed to leave no residue and won’t damage your goods.
• Persistent fog production – small particle size means the smoke will last up to 40 minutes unventilated.
• Supports automatic re-firing via screen-sensor technology.
• Energy-saving mode.
• Battery back-up for off-mains operation (min. 1 hour).
• Now compatible with Sentinel+ IP cards and the Sentience monitoring platform.
• Compliant with International (IEC62642:8) and European Standards (EN50131:8).

Operation

• 4 inputs and 7 outputs.
• LCD status display and on-board event log.

Construction

• Rugged and compact steel casing in white/black.
• Environmental pack for installation in confined spaces with elevated ambient temperatures.
• Machined steel heater block allows use of most persistent smoke chemical.

Standards Compliance

• EN50131:8 and IEC62642:8.
• CNPP Rating: Class I Category 30.

Fluid

1000ml / 5000ml fluid system.

Data

• Dimensions: 46.5(H)* x 13(D) x 31(W) cm *add 0.5cm for feet.
• Weight: 18kg (pre-install), 23kg (total).
