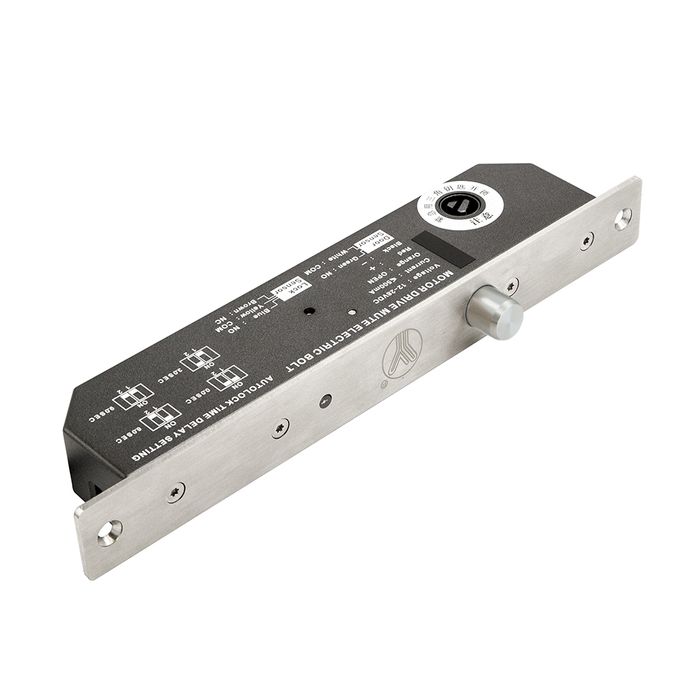

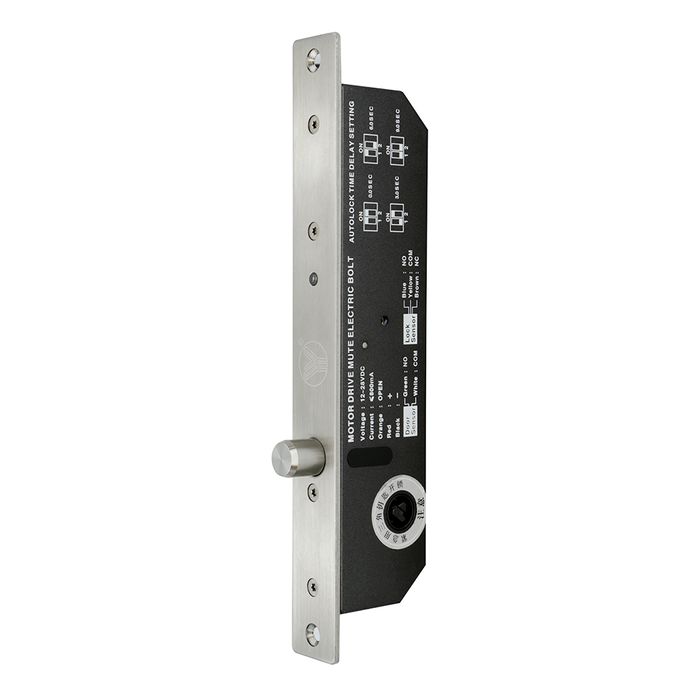

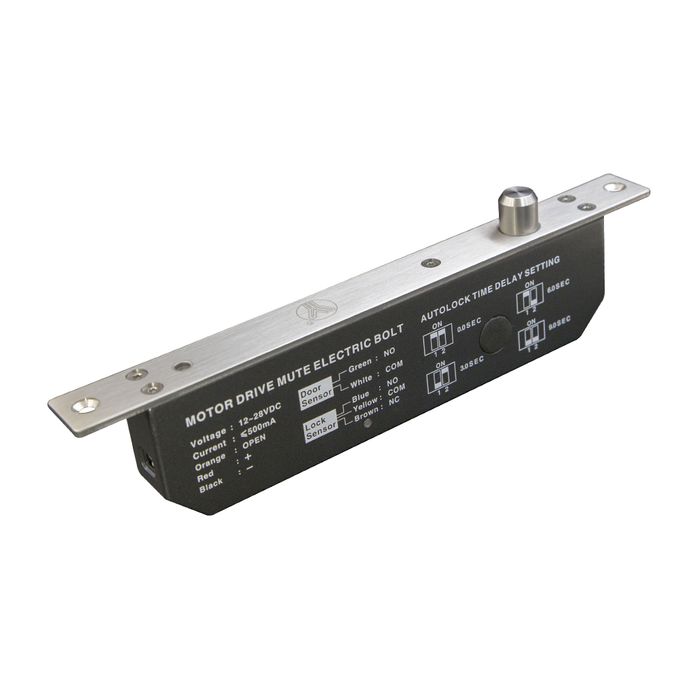

Model: YB-1600MD(LED)

Lock Body: 260Lx30Wx53H(mm)
Dimensions of Strike Plate: 100Lx25Wx3H(mm)
Dimensions of Latchbolt: 14mm(prolongation)x16mm(diameter)304 stainless steel high strength solid bolt
Signal Output: Door signal(NO/COM);Lock signal(NO/NC/COM)
Voltage: 12~28VDC
Current: Start 12V/800mA;Standby 12V/ 50mA
LED: Light on indicates locked, light off indicates unlocked
Material: 304 stainless steel, wire draw finishing
Autolock Time Delay: 0,3,6,9sec
Suitable For: metal door, glass door
Induction Distance: 8mm
Weight: 1kg
