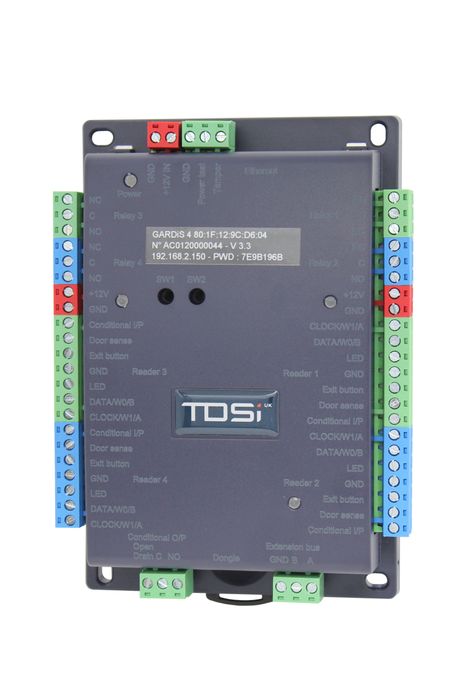

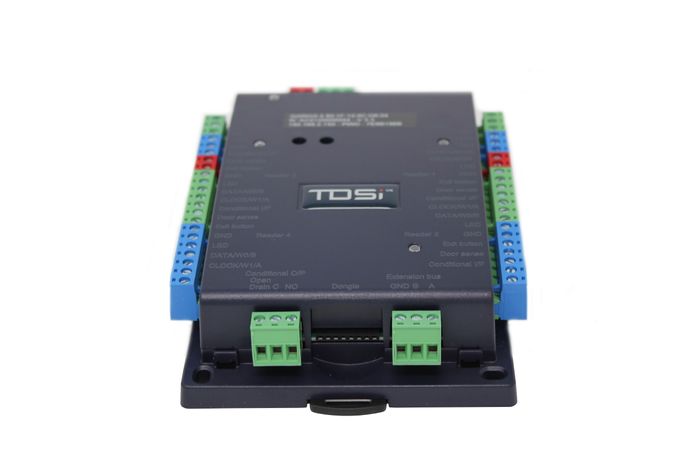

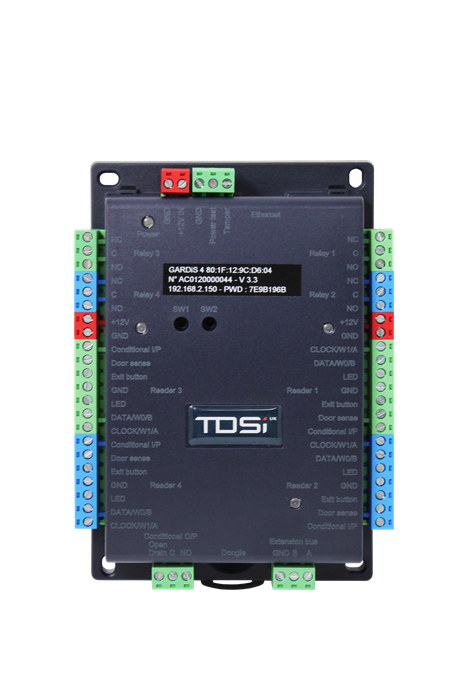

The GARDiS Web Embedded Controller is a user-friendly controller that is great for smaller sites where up to 5,000 credentials are required. This allows for greater scope and flexibility for your customers’ site.

• Embedded web server
• Fits up to 10 Wireless Locks – Aperio/Smart Intego*
• 5,000 Card Capacity+ 15,000 Event Buffer
• 1,000+ Access Groups
• Up to 10 Slave Units per Master giving control of up to 44 Doors
• Optional 8 Input/Output Modules
• Lift Control with optional I/O up to 80 Floors
• Compatible with ANSSI/OSDP Level-2-Compliant Secure Readers
• Universal Reader Decoder
• Multi-Protocols RS485 Wiegand and Clock&Data
• Anti-Pass Back, Anti-Time Back, Transit Delaying

* You can either use Aperio or Simons Voss or have additional doors

The GARDiS Web Embedded Master Controller is available in 3 product variations:

• 5002-6001 - GARDiS 1: 1-door master controller with connections for 1-2 readers
• 5002-6002 - GARDiS 2: 2-door master controller with connections for 2-4 readers
• 5002-6004 - GARDiS 4: 4-door master controller with connections for 4-8 readers

Extension Modules and GARDiS PSU Options are also available.

The GARDiS Web Embedded Controller is fully expandable. To increase the number of doors or equipment in the system, extension controllers must be purchased along with a license dongle to place into the master controller.
