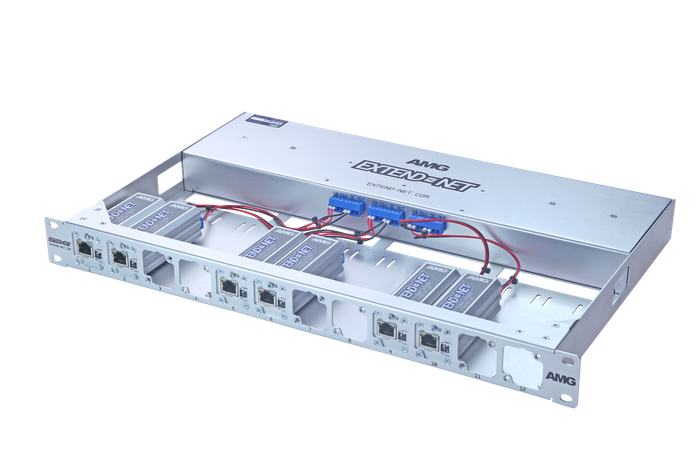

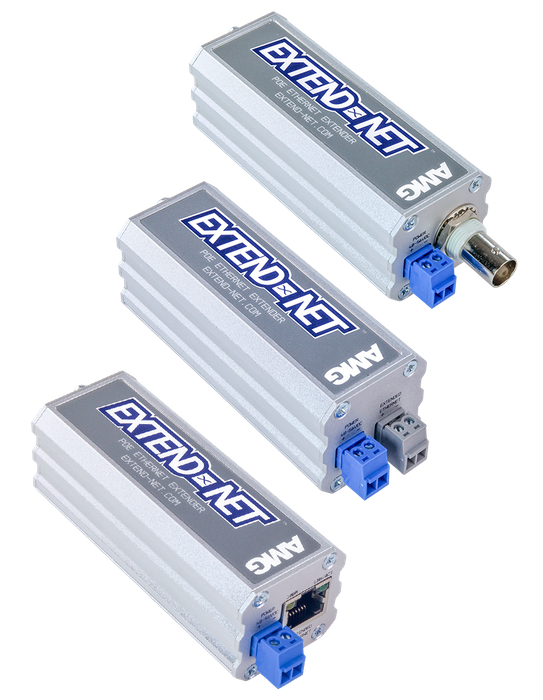

Extend-Net Ethernet extenders

AMG Systems Stand: 5/H40

AMG’s Coax/UTP Ethernet Extender range provides equipment to extend Ethernet and PoE over long
distances of copper cable. Multiple different technologies are available with transmission distances
up to 3 km which ensures that AMG has a product to achieve almost any long-distance ethernet extension requirement.
These units are designed in the USA & UK and manufactured in the UK, and operate in extreme conditions from -40°C to +75°C.

  • Compact size – ideal for confined spaces, including conduit, camera poles and roadside cabinets
  • -40°C to +75°C temperature maintains performance in extreme conditions
  • DIP switches for Local/Remote & 10/100Mb modes
  • Automatic 1-pair or 4-pair cable selection
  • Standalone, DIN rail or wall mountable – flexible mounting options are included with every unit
  • Extends Ethernet up to 610m (2,000 ft) at 100Mbps
  • Extends Ethernet up to 1000m (3,280 ft) at 10Mbps
  • Supports 15W, 30W, 60W & 90W PoE Pass-Through
  • Unicast, Multicast and jumbo Frames are supported along with full symmetrical bandwidth performance
  • Manufactured in the United Kingdom
  • 3 Year Warranty
